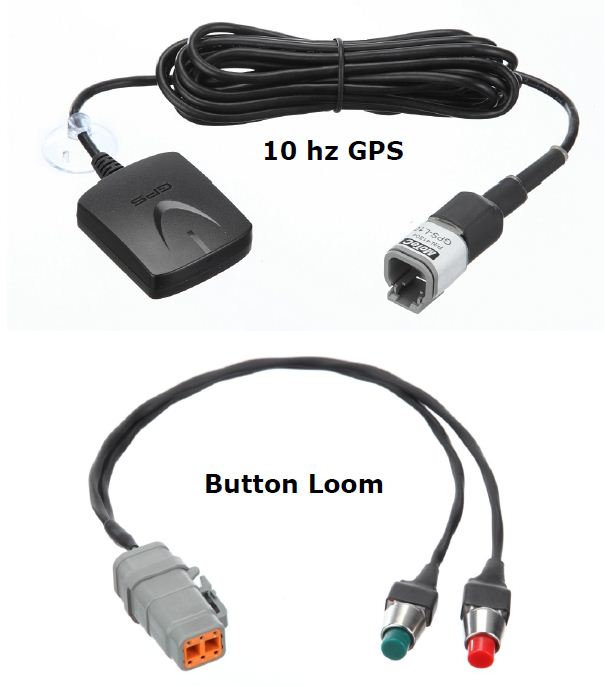

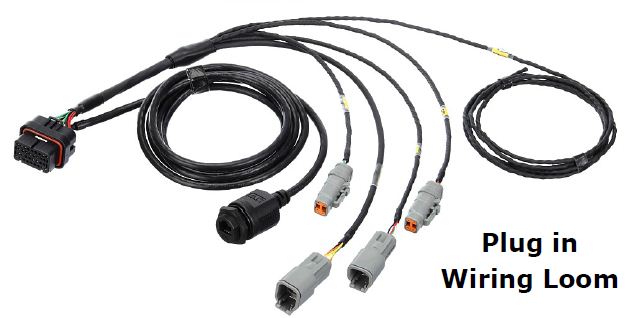

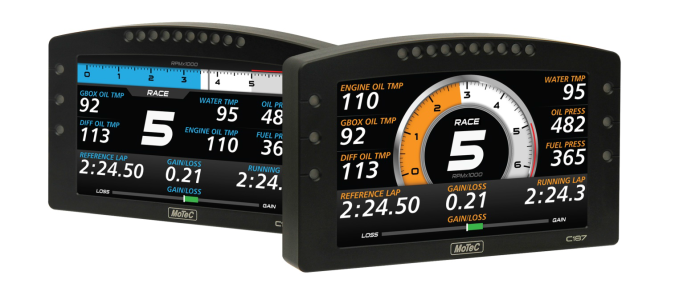

The C127 race display kit includes a MoTeC C127 Colour Dash, a terminated wiring loom, a 2 button loom to allow control of the dash and a 10Hz GPS unit. You can of course choose to add logging later via the simple MoteC upgrade code mechanism. The MoTeC C127 comes standard as a combined display and powerful control device in one lightweight unit. With the addition of the Data Logging upgrades it becomes a fully programmable data logger with 120 MB memory. The vivid 178mm screen (approx 7") is high resolution, ultra bright and anti-reflective for easy reading in direct sunlight. Numerous selectable layouts are provided with superb graphics that cater for day and night viewing. Within these layouts users can configure the channels and labels to suit their application. An array of ten full colour LEDs is integrated into the unit for use as shift lights, warning lights or other driver alerts. The colour, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences. In addition a further 6 multi colour LED provide additional information to the driver. For those customers wishing to use analogue sensors in addition to or instead of data from their ECU then the IO option enables several voltage, temperature, digital and speed inputs. Please contact us if you'd like some help specifying a solution to meet your needs. The IO option also brings with it four auxiliary outputs to control external devices. With the use of an E888 or E816 expander additional inputs are available, making this versatile unit suitable for many applications. MoTeC's i2 data analysis software provides all the tools for comprehensive analysis of logged data.
General
- All-in-one display, logger and controller eliminates the need for separate devices
- Impressive 178mm full colour LCD screen (approx 7") - ultra bright, high resolution and anti-reflective for easy viewing, even in direct sunlight
- Suitable for bikes, cars, marine and industrial applications
- Compact, durable and reliable unit
- Supports wideband Lambda from PLMs or LTCs, using Bosch LSU or NTK UEGO 5 wire sensors
- Straightforward control for lights, fans, pumps
- Can be used standalone or in conjunction with other electronic devices including MoTeC CAN-based Expanders
Logging and Analysis
- Optional internal data logging of 120 MB
- Fast download via Ethernet
- Accommodating over 300 channels derived from a mixture of analogue and digital inputs, RS232 and CAN data channels
- Configurable to use sensors from some existing engine management systems
- Data analysis with i2 Standard or i2 Pro with a feature license
Display
- Screen: Colour TFT LCD, anti-reflective
- Resolution: 800 x 480, anti-aliased graphics
- Selectable fixed layouts with channel and label configurability
- 48 user-defined, scrollable message lines with programmable overrides
- 3 programmable 'pages', for example Practice, Warm-Up, Race
